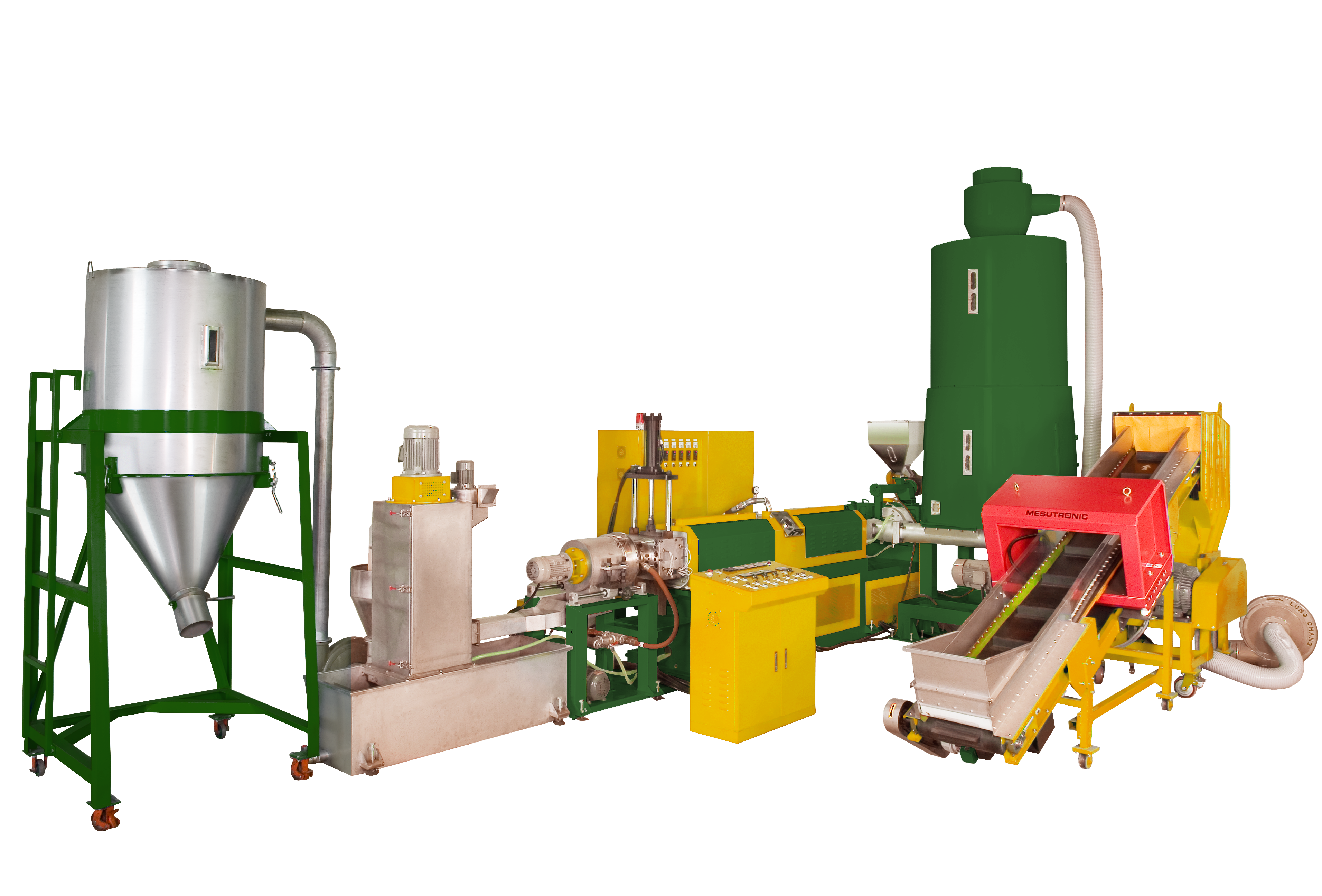

PW85, PW100

SIDE-FEEDING / WATER COOLING / DIE FACE CUT – RECYCLING MACHINE

Materials to be applied: PE, PP, PS, ABS, Film, Bottle, and Sheet.



Inquire this machine
  • Crushing, extrusion and pelletizing three-in-one system can save space, reduce energy consumption, and lessen labor costs.
  • Vent on the Barrel to evaporate the volatiles from the Recycle Material.
  • Die Face water-cooling for easy operation.
  • Conveyor material loader provides a safe working environment.
  • The Vertical Centrifuges separate and dry the Pellets faster.
  • Pressure gauge meter display to maintain good production and operator safety.
  • Second extruder
  • Magnetic Metal detector (Made in Germany)
  • Water Cooling Tower
  • Vacuum Pump
  • Chiller
  • Non-Stop Screen Changer
  • Vibratory Sorting Machine
  • Nip Roll Device
Model  Max Output Extruder Main Motor Side Feeding Motor
PW85 200Kg/Hr 60HP+AC inverter 7.5HP
PW100 350Kg/Hr 100HP+AC inverter 10HP
  • Specifications subject to change without notice.
